NTE ROTORS & ACCESSORIES
| The following products are made by NTE Electronics, Inc and brought to you by Charles Electronics, LLC For additional product information or to order, please contact us. Click here to view the NTE Rotor Informational Flyer |
| NTE U-105 PRECISION BUILT ROTATOR AND DIAL CONTROL BOX |
100 lbs vertical load capacity, takes a 1.125" - 2" Diameter Support Mast, and features
completely automatic control. Indicator accurately shows orientation of antenna and
precision-cut steel gears are hardened for long service life. Rugged, one-piece cast
aluminum housing designed for greatest strength in high stress areas. Large bearing
surfaces and strong, reinforced mast for lateral load support. Ball bearing provided for
thrust (vertical) load. High torque – easily handles largest antenna arrays. Built to take
high winds and harsh weather extremes – water tight seal, fully lubricated drive train.
Control designed for smoother, quieter operation. Takes a 20 AWG, 3-conductor wire (not
included). UL and CSA Listed
$99 - Call to order 1-800-238-7258 / Order online at Antenna Parts Outlet
completely automatic control. Indicator accurately shows orientation of antenna and
precision-cut steel gears are hardened for long service life. Rugged, one-piece cast
aluminum housing designed for greatest strength in high stress areas. Large bearing
surfaces and strong, reinforced mast for lateral load support. Ball bearing provided for
thrust (vertical) load. High torque – easily handles largest antenna arrays. Built to take
high winds and harsh weather extremes – water tight seal, fully lubricated drive train.
Control designed for smoother, quieter operation. Takes a 20 AWG, 3-conductor wire (not
included). UL and CSA Listed
$99 - Call to order 1-800-238-7258 / Order online at Antenna Parts Outlet

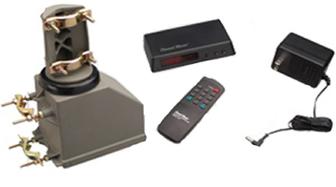

NTE U-106 PRECISION BUILT ROTATOR AND PROGRAMMABLE CONTROL BOX WITH REMOTE
| 100 lbs vertical load capacity, takes a 1.125" - 2" Diameter Support Mast. Digital display indicates antenna position during operation. Features a microprocessor controller with 18 functions and programmable memory. Allows you to pre-set 12 station directions for automatic positioning and manual positioning key provides fine tuning for locations not stored in memory. The U-106 has a 16 function soft-touch key pad remote. This compact unit allows you to facilitate program antenna position for clear and crisp reception. 70 second rotation time with precision-cut steel gears hardened for long service life. The rugged, one-piece cast aluminum housing designed for greatest strength in high stress areas. Large bearing surfaces and strong, reinforced mast for lateral load support. Ball bearing provided for thrust (vertical) load. High torque – easily handles largest antenna arrays. Built to take high winds and harsh weather extremes – water tight seal, fully lubricated drive train. Control designed for smoother, quieter operation. Takes a 20 AWG, 3-conductor wire (not included). UL and CSA Listed $113 - Call to order 1-800-238-7258 / Order online at Antenna Parts Outlet |
NTE TB-105 SUPPORT BEARING
The TB-105 Support Bearing is for use with 1 1/2" maximum antenna masts and 2"
maximum support masts. For use with U-105/U-106 NTE Rotors or with other similar rotors
when extra sturdy installation is desired. This bearing provides extra support for rotator
drive unit bearings and features an all ball bearing design. Use of this bearing relieves
wear and tear on your rotator imposed by wind load. Weather-tight seal protects TB-105
Support Bearing against the elements. All mounting hardware supplied. Note: You must
cut/remove the tab from the
drive unit when using TB-105 with the NTE rotors.
$34 - Call to order 1-800-238-7258 / Order online at Antenna Parts Outlet
maximum support masts. For use with U-105/U-106 NTE Rotors or with other similar rotors
when extra sturdy installation is desired. This bearing provides extra support for rotator
drive unit bearings and features an all ball bearing design. Use of this bearing relieves
wear and tear on your rotator imposed by wind load. Weather-tight seal protects TB-105
Support Bearing against the elements. All mounting hardware supplied. Note: You must
cut/remove the tab from the
drive unit when using TB-105 with the NTE rotors.
$34 - Call to order 1-800-238-7258 / Order online at Antenna Parts Outlet
| NTE CB-105 REPLACEMENT CONTROL BOX |
| Power Consumption: 68W @ 120 Vac, 60 Hz. Output: 18 Vac±5%. Dimensions: 7"W x 5.875"D x 2.375"H. Takes 20 AWG, 3 Conductor Wire Hook-Up (not included) $40 - Call to order 1-800-238-7258 / Order online at Antenna Parts Outlet |
 |  |  |  |  |
| Rotor wire & other rotor parts/accessories available at www.antennapartsoutlet.com |
